SOLISCADA Architecture:
Empower Industry 4.0 with Agile,
Scalable SCADA Solutions

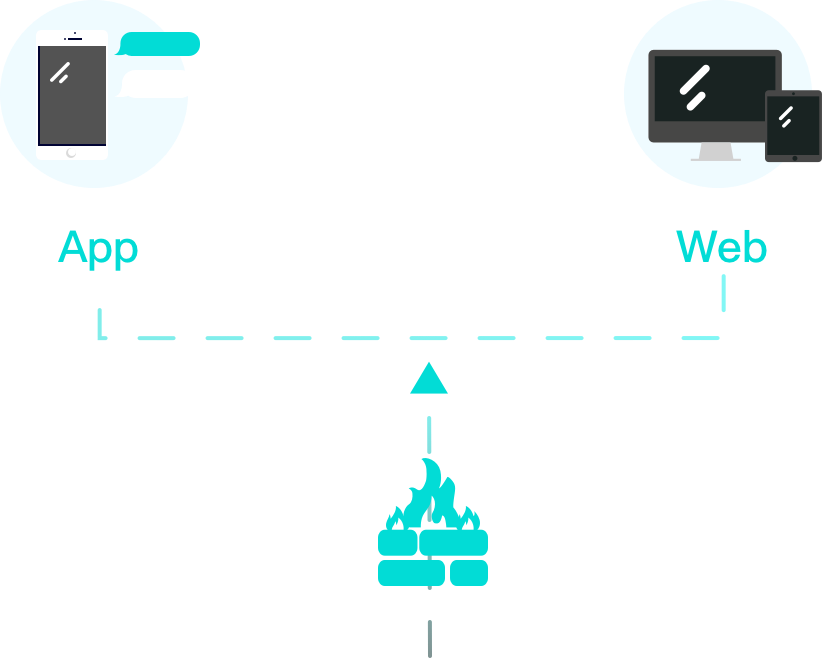

SOLISCADA is built on a high-performance real-time database with a modular design, making it easy to expand and adapt. It supports C/S, B/S, and M/S architectures, allowing users to access SCADA system data and controls via desktops, browsers, and mobile devices. With flexible deployment, users can monitor and manage production processes anytime, anywhere, ensuring efficiency and reliability in the Industry 4.0 era.

SCADA Client HMI

The main HMI interface accessible via Windows, web, and mobile devices, offering visualization, real-time data, alarms, reports, and remote control.

Engineering Workstation

Provides tools for configuration, monitoring, and maintenance. Engineers can design screens, configure data access, set alarms, and develop reports, with one-click deployment across all stations.

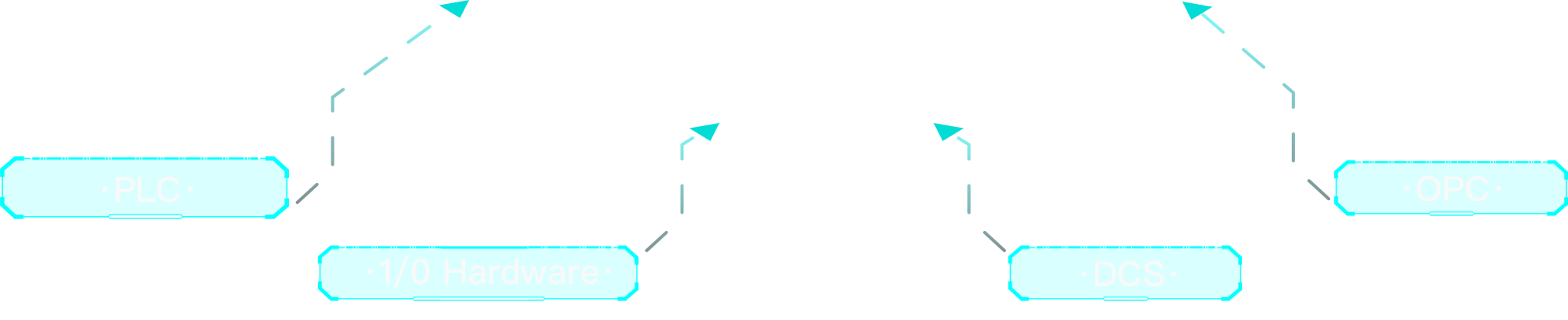

Data Acquisition Platform

Supports standard protocols (Modbus, OPC DA/UA, MQTT) and PLC data collection (S7, CIP). Deployable on-site or at the edge for comprehensive factory-wide data collection.

Real-time Database (Historian)

A large-scale industrial real-time database that receives, processes, compresses, and stores real-time data, serving as the foundation for SCADA modules and providing data push/query services.

Key Benefits of Using SOLISCADA

Unlimited Licensing

Completely free to download with unlimited licensing. It also allows configuration of up to 50,000 tags with full access to all functionalities- for free.

Ease-of-Use

Enjoy an intuitive interface designed for rapid deployment and minimal training, ensuring a smooth user experience.

Real-Time Monitoring

Stay ahead with continuous data acquisition and visualization, enabling immediate identification and resolution of operational anomalies. N*2 full redundancy ensures over 50,000 hours of uninterrupted operation even during failures.

Seamless Scalability

Scale effortlessly with support for over 100 industrial protocols, immersive 3D visualization for complex systems, and powerful VBScripting for customized automation and integration.

Enhanced Security

Safeguard your operations with multi-layer network protection, strict user permissions, and secure data backups.

Professional Support & Training

Safeguard your operations with multi-layer network protection, strict user permissions, and secure data backups.

Essential Functionalities

Data Collection

Supports 100+ protocols (Modbus, OPC, MQTT, IEC, etc.) and relational databases (MySQL, SQL Server, Oracle) for real-time field data.

Data Processing

Real-time database handles alarms, trends, calculations, and ODBC/OPC services. Includes advanced alarm management and analytics.

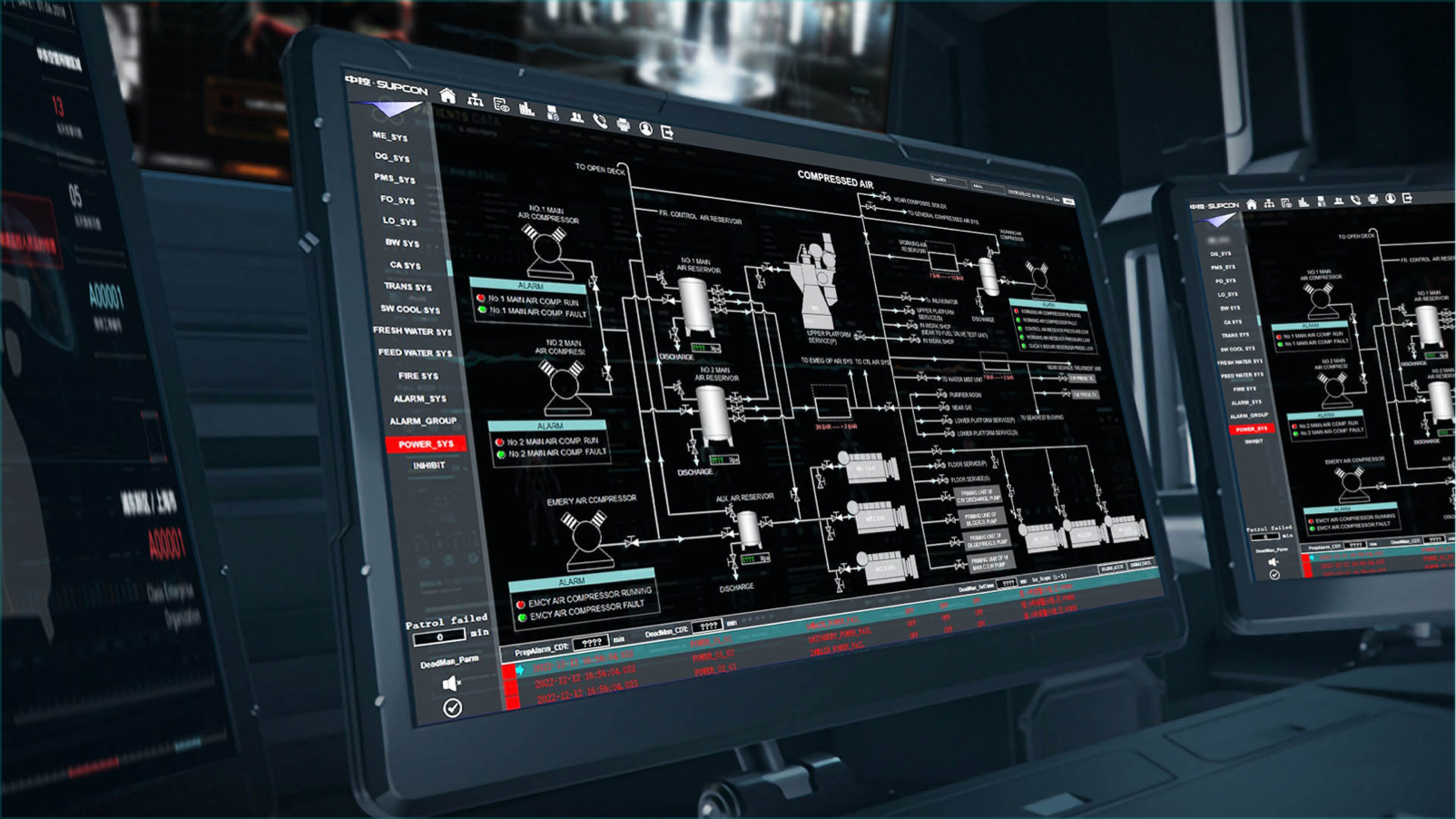

HMI Visualization

2D/3D displays with dynamic graphics, templates, and charts (curves, bars, pie charts) for intuitive monitoring.

VBS Scripting

Built-in VBScript for custom data processing and visualization, offering scalable solutions.

Trend Analysis

Generate real-time/historical trend curves to visualize process changes and faults.

Data Reporting

Customizable reports (daily, weekly, energy) with stats and charts; printable for offline use.

Alarm Management

Real-time monitoring with limit/status/rate alarms. Alerts via pop-ups, sounds, emails; logs all events.

Data Overview

Tabular data display with names, values, units; color-coded alarms by severity.

Operation Logs

Track all operator actions (logins, config changes) with timestamps and details for traceability.

User Permissions

Configure user groups and roles for secure system access and data management.

Object-Oriented Configuration

Rapid deployment of similar devices (valves, pumps) using templates and point groups.

Redundancy

Multi-layer redundancy (servers, networks, I/O) ensures reliability in complex environments.

Data Backup & Restoration

Schedule backups of trends, alarms, logs; restore data via ZIP files in case of loss.

Beyond the Basics

ADVANCED FEATURE 01

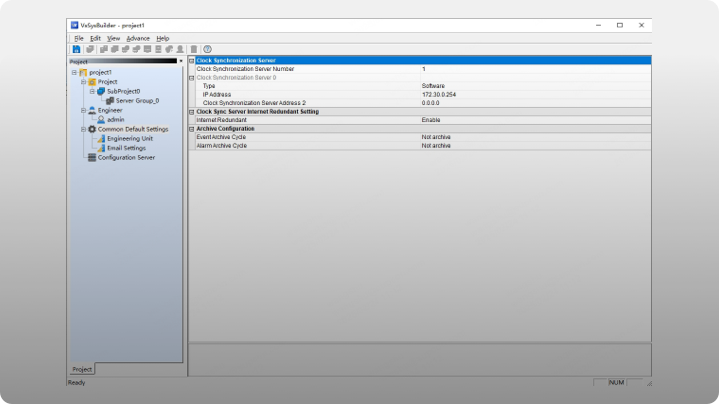

Precision Clock Synchronization

Ensure seamless coordination across your SCADA system with high-precision clock synchronization using protocols like NTP or PTP. This feature guarantees consistent timing across all devices and nodes, enabling accurate event logging, fault analysis, and multi-device collaboration. Enhance system reliability and data accuracy effortlessly.

ADVANCED FEATURE 02

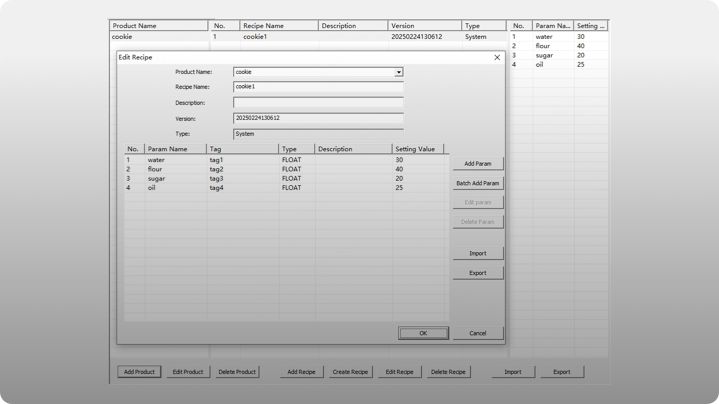

Recipe Management

Streamline your production processes with our intuitive Recipe Management feature. Create, store, and manage parameter settings (e.g., temperature, pressure, time) for different production workflows. With one-click recipe activation, quickly adapt to varying production demands, supporting small-batch, high-mix manufacturing while boosting flexibility and efficiency.

ADVANCED FEATURE 03

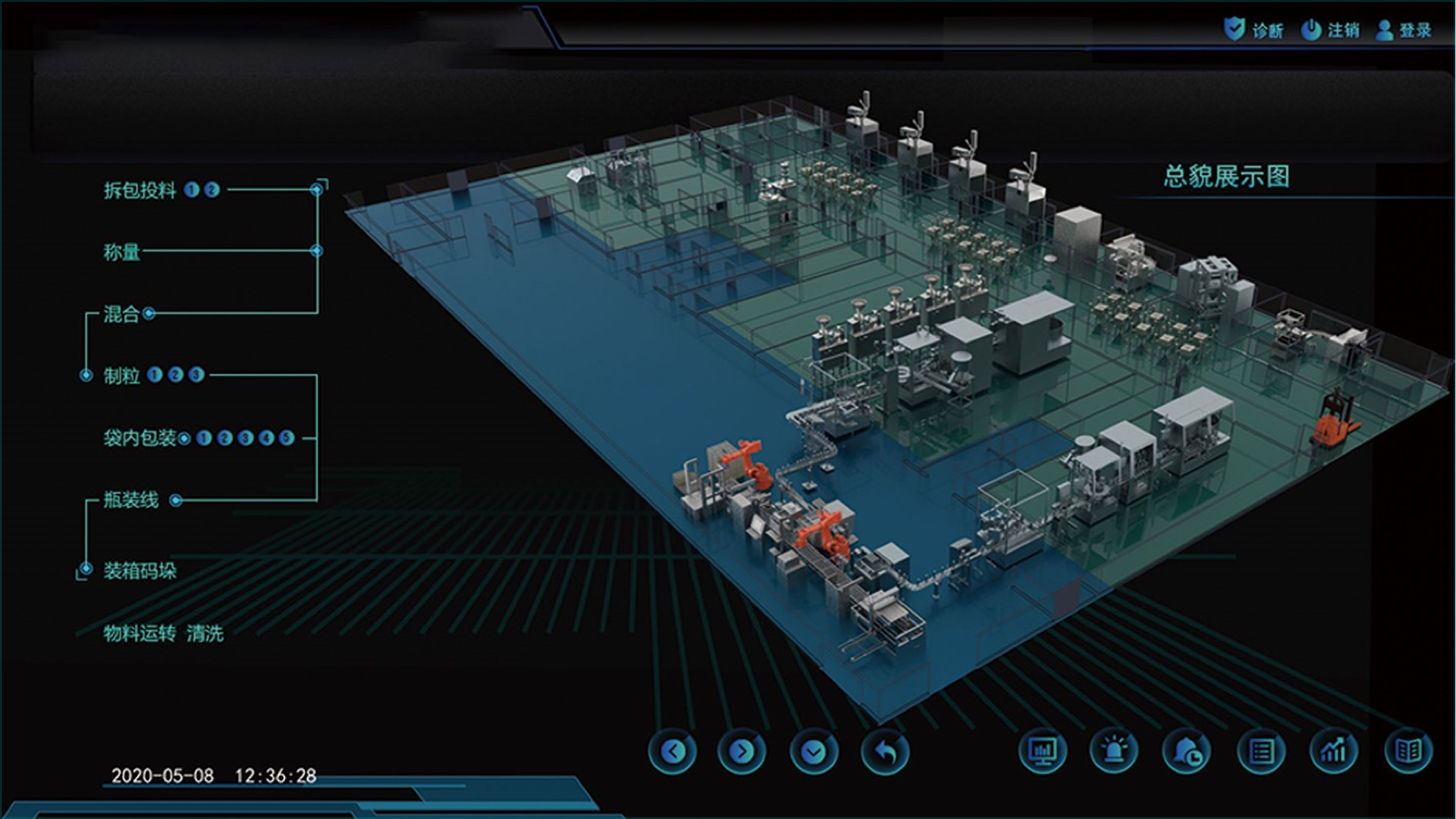

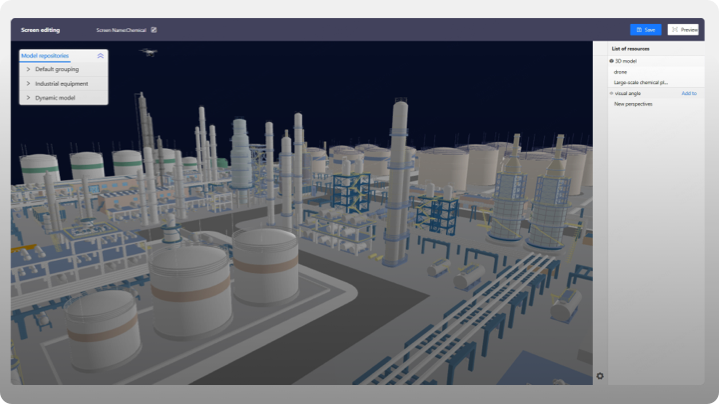

3D Visualization

Experience your operations like never before with 3D Visualization. This feature transforms equipment and production processes into interactive 3D models, providing a clear, real-time view of system status and workflows. Enhance monitoring, simplify training, and streamline maintenance with this immersive tool.

ADVANCED FEATURE 04

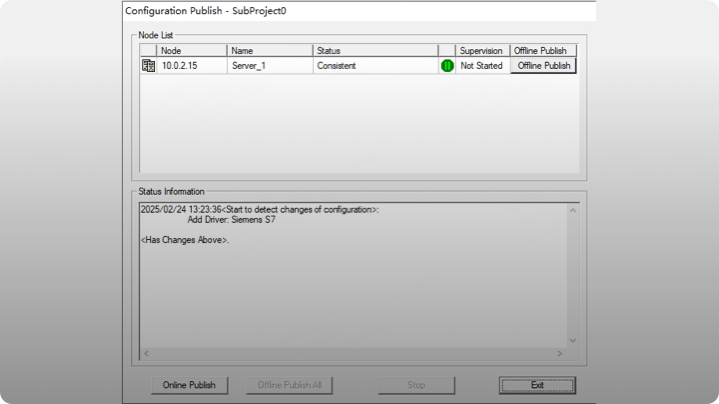

Online Configuration Publishing

Maximize uptime and flexibility with Online Configuration Publishing. Update and deploy configuration changes in real-time without system downtime or reboots. This feature minimizes maintenance interruptions, ensuring continuous operation and adaptability to evolving needs.

ADVANCED FEATURE 05

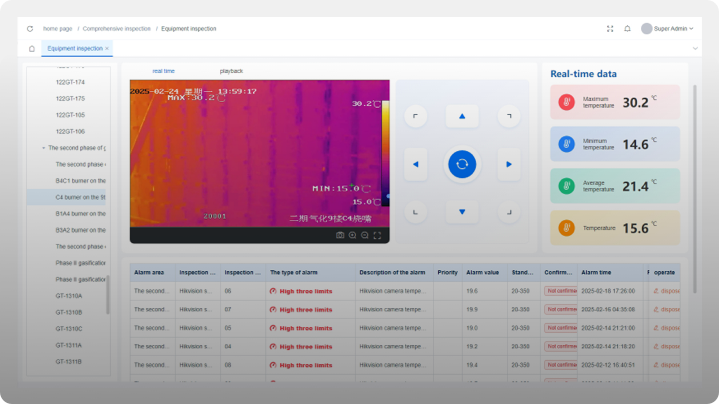

Video Integration & Alarm Linkage

Integrate surveillance cameras with your SCADA system for synchronized video and real-time data display. When alarms are triggered, the system automatically retrieves relevant video feeds, enabling operators to quickly identify and resolve issues. Improve emergency response times and operational efficiency with this seamless integration.

System Requirements

Operating System Compatibility

· Windows 11 Enterprise Chinese/English 32/64-bit
· Windows 10 IOT Enterprise Chinese/English 32/64-bit
· Windows Server 2019 Chinese/English 64-bit
· Windows Server 2016 Standard Chinese/English 64-bit
· Windows Server 2008 R2 Chinese/English 32/64-bit

Hardware Specifications

· CPU: i5 2.5GHz
· Hard Drive: 512GB or more
· Memory: 8GB or more
· Network Card: 2-3 pieces 10M/100M network cards

Supported Databases

· Microsoft® SQL Server
· Oracle
· MySQL
· VX Historian

Supported Browsers

· Chrome
· Edge
· Firefox

FAQS

How do I get started with SOLISCADA?

Our Quick Start Guide will walk you through the installation, licensing, and initial setup.

Are there any hidden costs or fees associated with SOLISCADA?

No. The software is completely free to download, includes unlimited licensing, and allows configuration of up to 50,000 tags with full access to all functionalities- for free. For further inquiries, please don’t hesitate to contact our support team at soliscada@supcon.com.

What data acquisition drivers and databases are currently supported?

SOLISCADA supports over 100 protocols, including Modbus, OPC, MQTT, IEC, and others, as well as relational databases like MySQL, SQL Server, and Oracle.

Can I still run SOLISCADA Software without licensing?

Yes, you can run the software without a license for up to 2 hours and configure up to 10 tags. However, we strongly recommend creating an account to obtain and manage your licensing keys. This will unlock full access to all functions without limitations.

How many license keys can a single account obtain?

A single account can obtain an unlimited number of license keys.

How do you ensure the security of SOLISCADA?

The security of the SOLISCADA system is ensured through a multi-dimensional approach, including network protection, user permissions, and backup of critical data.

Can SOLISCADA be accessed remotely?

Yes, SOLISCADA can be accessed remotely via web browsers, mobile devices, and Windows desktops, providing real-time monitoring and control from anywhere.

What support and training do you offer to new users?

We offer free training videos and resources covering everything from basics to advanced features. Additionally, we encourage you to join our community on GitHub and Discord for further support and collaboration.
